Ceramic Cutting Blade, Ceramic Fixed Blade
Ceramic Cutting Blade, Ceramic Fixed Blade

编号 : CSG20131218

详细介绍 :

Ceramic Cutting Blade  (Ceramic Fixed Blade)

It is mainly used in cutting polyester granular in the chemical industries. It can perfectly match with the underwater granular-cutting machines, which produced by Gernan Rieter Automatik GmbH or other factories.

◆Material Properties

Composition

Wt%

94.6% ZrO2 5.4%Y2O3

Density

g/cm3

≥6.01

Hardness

GPa

≥12

Thermal Expansion Coefficient

10-6/k

9.6(20～400)

Modulus of Elasticity

GPa

200～250

Fracture Toughness

MPa·m1/2

>9

Bending Strength

MPa

>1150

Grain Size

μm

<0.5

Thermal conductivity

w/(m·k)

2.5

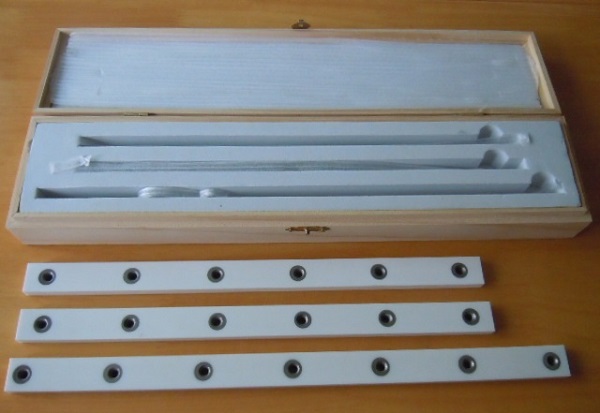

                                                  ◆Ceramic Fixed Blade Pictures & Regular Size:

350x20x8mm;    318x20x8mm;     305x20x8mm;
300x30x10mm;    340x20x8mm;     230x20x8mm;  other sizes


◆Features of the Structural Ceramics:
1. High strength and have excellent wear and corrosion resistance
2. High hardness and density
3. Ultra-smooth surface, low friction coefficient
