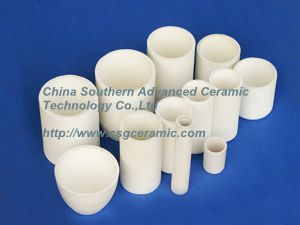

Alumium Ceramic crucible
Alumium Ceramic crucible

Item : CSG00193

Details :

Alumina Crucibles Types & Specification:
1) Cylinder Alumina Crucibles
2) Conical Alumina Crucibles


                                                         Alumina  Crucibles
Crucible Type
 Diameter
Top（Bottom）×Height (mm×mm)
Wall thickness
(mm)
Approx. Capacity
 (ml)
Shape
Mark
CS2520-14
￠25(14)×20
1.5
5
Conical

CS2723
27.5×23×10
2
5
Rectangle

CS2825-20
￠28(20)×25
3.0
7
Conical

CS3030-18
￠30(18)×30
1.7
10
Conical

CS3030
￠30×30
1.8
15
Cylinder

CS3060
￠30×60
1.8
30
Cylinder

CS3210
￠32×10
1.5
20
Cylinder

CS3438-20
￠34(20)×38
1.9
20
Conical

CS3645
￠36×45
2.5
30
Cylinder

Crucible Type
 Diameter
Top（Bottom）×Height (mm×mm)
Wall thickness
(mm)
Approx. Capacity
 (ml)
Shape
Mark
CS3829-20
￠38(20)×29
2.0
15
Conical

CS4032
￠40×32
1.6
30
Cylinder

CS4245
￠42×45
2.5
45
Cylinder

CS4342
￠43×42
1.8
50
Cylinder

CS4640-25
￠46(25)×40
3.0
30
Conical

CS5348-40
￠53(40)×48
1.8
80
Conical

CS5553-48
￠55(48)×53
2.5
90
Conical

CS5572-48
￠55(48)×72
2.6
140
Conical

CS5560-33
￠55(33)×60
2
80
Conical

CS5590
￠55×90
2.5
200
Cylinder

Crucible Type
 Diameter
Top（Bottom）×Height (mm×mm)
Wall thickness
(mm)
Approx. Capacity
 (ml)
Shape
Mark
CS5645-30
￠56(30)×45
2.9
50
Conical

CS5768-37
￠57(37)×68
3.5
100
Conical

CS6060
￠60×60
3.0
130
Cylinder

CS606035
60×60×35
2.5
95
正方形

CS6071-39
￠60(39)×71
2.2
130
Conical

CS6550-55
￠65(55)×50
2
130
Conical

CS7675-55
￠76(55)×75
2.7
240
Conical

CS8080
￠80×80
3.3
350
Cylinder

   CS8090
￠80×90
3.3
390
Cylinder

CS80110-65
￠80(65)×110
3.3
400
Conical

Crucible Type
 Diameter
Top（Bottom）×Height (mm×mm)
Wall thickness
(mm)
Approx. Capacity
 (ml)
Shape
Mark
CS8540
85x85x40
4.0
200
Square

CS10040
￠100×40
5.5
200
Cylinder

CS10018
100×50×18
3.0
40
Rectangle
with a rounded bottom
CS100100
￠100×100
4.0
550
Cylinder

CS100150-70
￠100(70)×150
4.5
800
Conical

CS110150
￠110×150
5.0
1200
Cylinder
