Alumina Ceramics Parts

Alumina Ceramics Parts

Item : CSG1000665

Details :

Alumina structure ceramics

Specifications

1.High mechanical strength
2.Good thermal stability
3.Good chemical capability and insulation
4.resistant-wearing

China Southern Advanced Ceramic Technology Co., Ltd.is one of the world’s leading advanced ceramic materials companies in the design, manufacture and marketing of high-tech ceramics. We are major supplier alumina products, zirconia products, magnesia products, Si3N4products and AIN products.These are used in a wide range of applications in Electricity, information, power, automobile, and petrol .

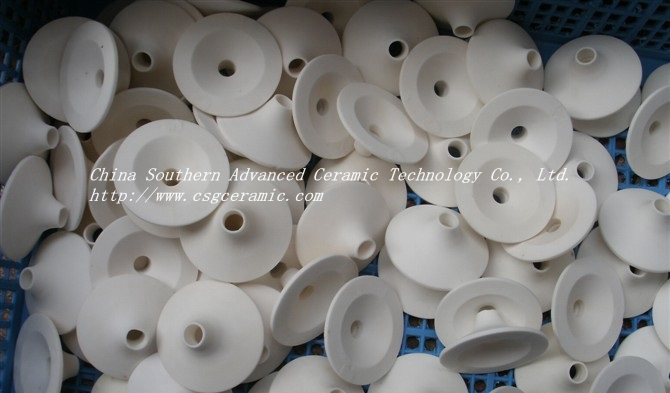

Alumina structure ceramics

Alumina ( Al2O3 ) purity:99.9%, 99.5%, 99.7% Al2O3

Endure high temperature of 1600 degrees Celsius

Various shapes: ball, plungers, rings, plates, bars, discs and pistons

Colors: white, black, pink and yellow

Density: more than 3.85g/cm3

High strength: bending strength more than 300MPa

Specifications





























































































































Item

Test Condition

Unit&Symbol

95% Al2O3

99% Al2O3

99.7% Al2O3

The main chemical ingredient





Al2O3

Al2O3

Al2O3

Bulk Density



g/cm3

3.6

3.89

3.96

Maximum Use Temperature





1450°C

1600°C

1650°C

Water absorption



%

0

0

0

ROHS Hardness





≥85

≥89

≥89

Flexural strength

20° C

MPa (psi x 103)

358 (52)

550

550

Compressive Strength

20° C

MPa (psi x 103)

2068 (300)

2600(377)

2600(377)

Fracture Toughness

K(I c)

Mpa m1/2

4 - 5

5.6

6

Coefficient of thermal expansion

25-1000° C

1X 10-6/°C

7.6

7.9

8.2

Coefficient of thermal conductivity

20° C

W/m °K

16

30

30.4

Thermal Shock Resistance

Tc

°C

250

200

200

Dielectricity constant

1MHz.25°C



9

9.7

9.7

Dielectric strength



ac-kV/mm (ac V/mil)

8.3 (210)

8.7 (220)

8.7 (220)

Volume Resistivity

100°C

ohm-cm

> 1013

> 1014

> 1014
