Alumina Ceramic Rod

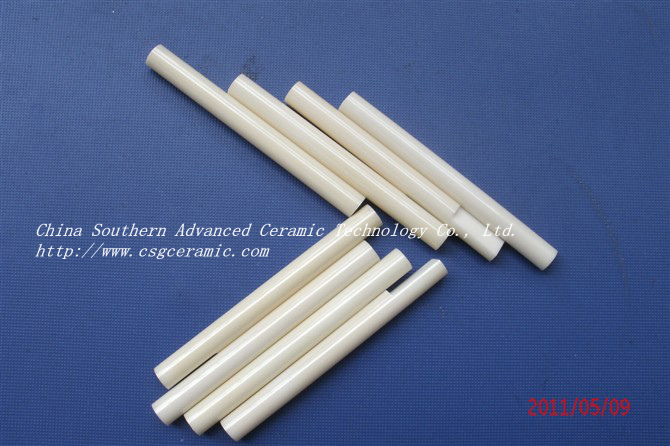

Alumina Ceramic Rod

Item : CS500001

Details :


Item

Test Condition

Unit&Symbol

95% Al2O3

99% Al2O3

99.7% Al2O3

The main chemical ingredient





Al2O3

Al2O3

Al2O3

Bulk Density



g/cm3

3.6

3.89

3.96

Maximum Use Temperature





1450°C

1600°C

1650°C

Water absorption



%

0

0

0

ROHS Hardness





≥85

≥89

≥89

Flexural strength

20° C

MPa (psi x 103)

358 (52)

550

550

Compressive Strength

20° C

MPa (psi x 103)

2068 (300)

2600(377)

2600(377)

Fracture Toughness

K(I c)

Mpa m1/2

4 - 5

5.6

6

Coefficient of thermal expansion

25-1000° C

1X 10-6/°C

7.6

7.9

8.2

Coefficient of thermal conductivity

20° C

W/m °K

16

30

30.4

Thermal Shock Resistance

Tc

°C

250

200

200

Dielectricity constant

1MHz.25°C



9

9.7

9.7

Dielectric strength



ac-kV/mm (ac V/mil)

8.3 (210)

8.7 (220)

8.7 (220)

Volume Resistivity

100°C

ohm-cm

> 1013

> 1014

> 1014


Alumina Ceramic Rod

1.The alumina rods are widely used in the thermocouple protections and some are used in furnaces.

2.We could design both open for two ends,and one open, the other closed.

Also we could make with 2 or 4 holes in the tube. The size ranges from 3mm to 600mm for O.D.

and the length is from 1mm to 2000mm. We can also design upon the customers' requirements.

3.Materuak:99.5% AL2O3

4. Packing: according to requirement.



Specifications

alumina ceramic rods 1.wear-resistant
2.anti-high temperature
3.mechanical seals good
4.anti-corrosion
5.anti-friction







































































































































Item

Test Condition

Unit&Symbol

95% Al2O3

99% Al2O3

99.7% Al2O3

The main chemical ingredient





Al2O3

Al2O3

Al2O3

Bulk Density



g/cm3

3.6

3.89

3.96

Maximum Use Temperature





1450°C

1600°C

1650°C

Water absorption



%

0

0

0

ROHS Hardness





≥85

≥89

≥89

Flexural strength

20° C

MPa (psi x 103)

358 (52)

550

550

Compressive Strength

20° C

MPa (psi x 103)

2068 (300)

2600(377)

2600(377)

Fracture Toughness

K(I c)

Mpa m1/2

4 - 5

5.6

6

Coefficient of thermal expansion

25-1000° C

1X 10-6/°C

7.6

7.9

8.2

Coefficient of thermal conductivity

20° C

W/m °K

16

30

30.4

Thermal Shock Resistance

Tc

°C

250

200

200

Dielectricity constant

1MHz.25°C



9

9.7

9.7

Dielectric strength



ac-kV/mm (ac V/mil)

8.3 (210)

8.7 (220)

8.7 (220)

Volume Resistivity

100°C

ohm-cm

> 1013

> 1014

> 1014
































































































































Item

Test Condition

Unit&Symbol

95% Al2O3

99% Al2O3

99.7% Al2O3

The main chemical ingredient





Al2O3

Al2O3

Al2O3

Bulk Density



g/cm3

3.6

3.89

3.96

Maximum Use Temperature





1450°C

1600°C

1650°C

Water absorption



%

0

0

0

ROHS Hardness





≥85

≥89

≥89

Flexural strength

20° C

MPa (psi x 103)

358 (52)

550

550

Compressive Strength

20° C

MPa (psi x 103)

2068 (300)

2600(377)

2600(377)

Fracture Toughness

K(I c)

Mpa m1/2

4 - 5

5.6

6

Coefficient of thermal expansion

25-1000° C

1X 10-6/°C

7.6

7.9

8.2

Coefficient of thermal conductivity

20° C

W/m °K

16

30

30.4

Thermal Shock Resistance

Tc

°C

250

200

200

Dielectricity constant

1MHz.25°C



9

9.7

9.7

Dielectric strength



ac-kV/mm (ac V/mil)

8.3 (210)

8.7 (220)

8.7 (220)

Volume Resistivity

100°C

ohm-cm

> 1013

> 1014

> 1014
