Products

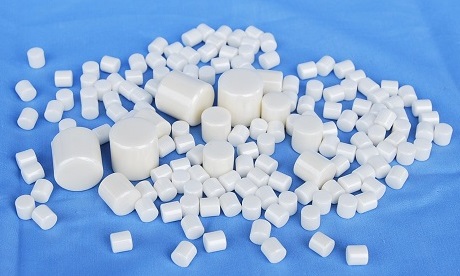

Zirconia Cylinder Media
Zirconia Cylinder Media

Item : CS60000-5

Details :

◆Product Intrduction
Zirconia Y-TZP grinding media bead (ball) is made from super material and advanced technical craft and suitable for any kinds of mills such as micro-mill, attritor-mill, vibratory mill and ball mill to grind and disperse effectively and economically the material of electronic slurry, ceramic powder, magnetic material, battery material, rare-earth material, nonmetal ore, painting, dye, ink, calcium, titanium, pesticide, food stuff and medicine etc.
Comparing with other grinding media such as Alumina media, zirconia silicate media, steel media, agate media and glass media, Zirconia Y-TZP grinding media has high density and toughness and super hardness, so it has better grinding efficiencies. The high wear-resistant Zirconia Y-TZP grinding media prevents materials from being contaminated and chemical etching or short service life of the grinder.

These special features make Zirconia Y-TZP grinding media especially suitable for material grinding in important occasion.
◆Product Features
△Product Features Preventing material from contamination
△High grinding efficiency
△Suitable for high viscosity, wet grinding and dispersion
△So it's tougher and more resistant to wear and deterioration from a long term point of view.

◆Zirconia Y-TZP Ceramic Balls Properties
Items
Unit
Typical Values
Composition
wt%
94.8% ZrO2 5.2%Y2O3
Bulk Density
kg/L
3.5 (Ф>7mm)
Specific Density
g/cm3
6.05
Hardness(HV)
GPa
>12
Modulus of Elasticity
GPa
200
Thermal Conductivity
W/m.K
3
Thermal Expansion Coefficient
10×10-6/°C(20to400)
9.6
Crushing Load
KN
≥25(Ф7mm)
Fracture Toughness
MPam½
8
Grain Size
µm
≤0.5
◆Applications and Specifications
△High strength and high toughness products
Dielectricity materials、Piezoelectric materials、Mangnetic materials
△Wear and corrosion resistance products
Coating、Textile、 Pigment dispersions、Ink and dyestufts
△Prevention of product Ceramics contamination
Medical material、Foodstuffs
△Ceramics
Electronics ceramics、Refractory ceramics、Engineer ceramics
◆Available Sizes
△Zirconia Y- TZP Cylindrical Media are available in the following standard sizes:
Ф5×5、Ф7×7、Ф10×10、Ф12.7×12.7、Ф15×15、Ф20×20、Ф30×30、Ф50×50、Ф60×60
