Alumina Ceramic Rod
Alumina Ceramic Rod

Item : CS500001

Details :

Item : CS500001

Details :


Item
Test Condition
Unit&Symbol
95% Al2O3
99% Al2O3
99.7% Al2O3

The main chemical ingredient


Al2O3
Al2O3
Al2O3

Bulk Density

g/cm3
3.6
3.89
3.96

Maximum Use Temperature


1450°C
1600°C
1650°C

Water absorption

%
0
0
0

ROHS Hardness


≥85
≥89
≥89

Flexural strength
20° C
MPa (psi x 103)
358 (52)
550
550

Compressive Strength
20° C
MPa (psi x 103)
2068 (300)
2600(377)
2600(377)

Fracture Toughness
K(I c)
Mpa m1/2
4 - 5
5.6
6

Coefficient of thermal expansion
25-1000° C
1X 10-6/°C
7.6
7.9
8.2

Coefficient of thermal conductivity
20° C
W/m °K
16
30
30.4

Thermal Shock Resistance
Tc
°C
250
200
200

Dielectricity constant
1MHz.25°C

9
9.7
9.7

Dielectric strength

ac-kV/mm (ac V/mil)
8.3 (210)
8.7 (220)
8.7 (220)

Volume Resistivity
100°C
ohm-cm
> 1013
> 1014
> 1014

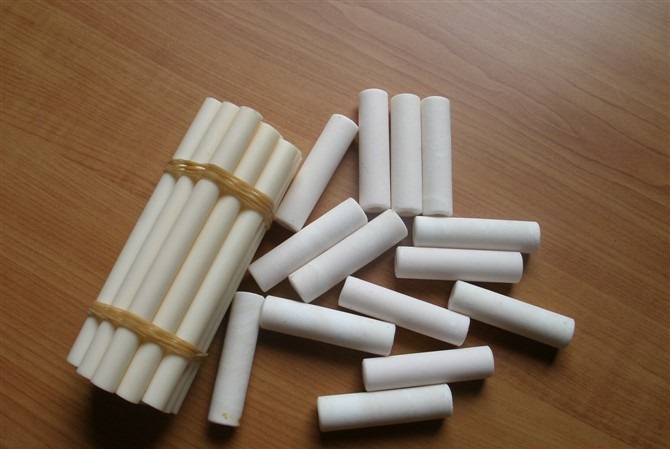

Alumina Ceramic Rod

1.The alumina rods are widely used in the thermocouple protections and some are used in furnaces.

2.We could design both open for two ends,and one open, the other closed.

Also we could make with 2 or 4 holes in the tube. The size ranges from 3mm to 600mm for O.D.

and the length is from 1mm to 2000mm. We can also design upon the customers' requirements.

3.Materuak:99.5% AL2O3

4. Packing: according to requirement.



Specifications

alumina ceramic rods 1.wear-resistant
2.anti-high temperature
3.mechanical seals good
4.anti-corrosion
5.anti-friction
