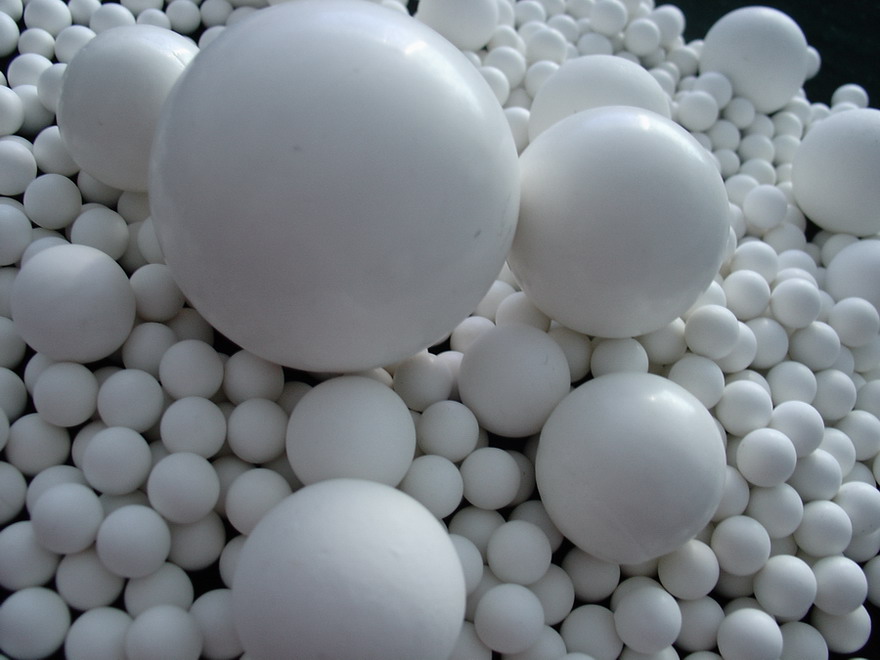

Alumina Grinding Media Bead

Alumina Grinding Media Bead

Item : CS-20061866

Details :


Alumina Grinding Media

The alumina grinding bead and ball are used as grinding media for ceramic body and glaze preparation. Thanks to the excellent wear resistance and hardness, it is suitable for both wet and dry grinding in both continuous ball mill and batch ball mill

The alumina grinding media(bead and ball) , featured by high hardness, high density, low wear loss, good corrosion-resistance rate, ect., are the most ideal grinding media for glaze material, body material and various powdered ores.

Performance Index:

1)   Data sheet from CS92 Type to CS97 Type

Type

CS92

CS92-1

CS95

CS97

Al2O3



                                 92%


92%


95%


97%

Moh’s hardness



9

9

9

9

Rate of Water Absorption (%)



≤0.01

≤0.01

≤0.01

≤0.01

Bulk Density (g/cm3)



3.60

3.62

3.68

3.73

Self-wearing loss(%-24 hours)



0.010

≤0.010

≤0.010

≤0.010

Remark: Regular size range from:

Dia. Φ1mm, Dia. Φ2mm, Dia. Φ3mm, Dia. Φ4mm, Dia. Φ5mm, Dia. Φ6mm, Dia. Φ7mm, Dia. Φ8mm, Dia. Φ9mm, Dia. Φ10mm,


Dia. Φ20mm, Dia. Φ30mm, Dia. Φ40mm, Dia. Φ45mm, Dia.v 50mm, Dia. Φ60mm, Dia. Φ70mm,

Bigger Size such as Dia. Φ80mm, Dia. Φ90mm, Dia. Φ100mm are also available upon customers’ requirement.



Packing:

25KG net weight in PP bag of 500 or 1000kg net. 20-24MT/20’FCL

Key Benefits:

High grinding efficiency for superfine grinding

Fine chemical capability and contamination-free to the grinded material

Extremely low wear rate

Excellent combination of toughness and hardness

Technical support provide to optimize milling

Application: The products are widely used as grinding media of ball mill on ceramics, paints, refractories, inorganic mineral powders industrials ect.

Inquire Now
