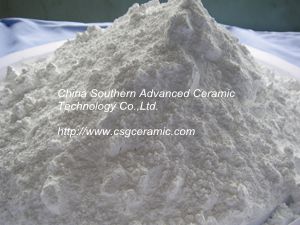

Zirconium oxide powder

Zirconium oxide powder

Item : CSG00018

Details :

Zirconia Powder Available Types:
1) Zirconium
2) Zirconium Hydroxide
3) Zirconium Oxide
4) Calcia Stabilized Zirconia
5) Magnesia Stabilized Zirconia
6) Yttria (3mol) Stabilized Zirconia
7) Yttria (5mol) Stabilized Zirconia
8) Yttria (8mol)Fully Stabilized Zirconia

Zirconia power introduction:

Because of its superior mechanical properties and smooth appearance, zirconia materials are now widely used in mechanical parts, electronic parts and cutting tools, to watch cases and manufacturing of optical fiber connector ferrules. Other notable applications are grinding media, and precision components.

Our factory produces yttria stabilized zirconium oxide by wet-chemical process which ensures a uniform dispersion of yttria. Our strict quality control system ensures consistent quality from batch to batch, a critical point in today's final product manufacturing. Our Zirconium Powder is known for its consistent stability andquality. Our product series includemonoclinal zirconium oxide powder and zirconium oxide powder with yttria stabilized. and suitable for dry press, CIP mould, injection mould, tape casting forming and so on.


Zirconia Power Type

◆SG0-TZP monoclinic powder :
Features:
● white solid powder with non-poisonous and non-taste.
● enough stabilization to alkali and many kinds of acid liquor (except for H2SO4,HF and H3PO4). ● 100% monoclinic.
● produced with advanced coprecipitation
● high purity and Ultrafine powder with size of 0.3 ~ 0.8 μ m
● applied in mixed of electronic components material, ceramic material and padding fired.

◆SG3-TZP Powder
Which is particularly stabilized with 3mol% yttria, is the standard grade which can be used in various forming methods to achieve a dense sintered body with well-distributed crystalline grains.

◆SG3S-TZP Powder
This grade of powder have a smaller surface area which contributes to a better flowability of the compound(slurry) in injection molding tape casting. For the production of large parts by mechanical press or ICP, this grad is recommended.

◆SG8-TZP Powder
Fully stabilized zirconia powder contains 8 mol% yttria. The sintered body is pure cubic zirconia and has high ionic conductivity. Therefore, it is used for the manufacture of sensors and solid oxide fuel cells.

◆Spray Dried Powder
Partially and fully stabilized zirconia powder are provided. Size of powder is between 30~70μm.



种类
单斜氧化锆气流粉
部分稳定
氧化锆气流粉
部分稳定
氧化锆造粒粉
全稳定
氧化锆粉
氧化锆
增韧
氧化铝
 Zirconia Power Type

SG0-TZP
SG3-TZP
SG3S-TZP
SG3-TZP
SG3S-TZP
SG8-TZP
SG-ZTA
Y2O3(mol%)
3
3
3
3
8

粉料规格标准
ZrO2(wt%)
≥99.8
94.80±0.20
94.80±0.20
94.80±0.20
94.80±0.20
86.50±0.50
18.81
28.33
Y2O3(wt%)
5.20±0.20
5.20±0.20
5.20±0.20
5.20±0.20
13.50±0.50
1.03
1.55
Al2O3
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
79.37 wt %
69.50 wt %
Fe2O3
<100ppm
<150ppm
<150ppm
<150ppm
<150ppm
<150ppm
<150ppm
SiO2
<450ppm
<450ppm
<450ppm
<450ppm
<450ppm
<450ppm
<450ppm
TiO2
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
——
Na2O
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
K2O
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
CaO
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
MgO
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
<100ppm
——
Cl-
<600ppm
<800ppm
<600ppm
<800ppm
<800ppm
<600ppm
<800ppm
比表面积BET(m2/g)
14±3
35±3
(10,15,20,25)
±3
35±3
15±3
35±3
——
粒度D50
(μm)
<0.6
<0.5
<0.5
造粒体
10~150
造粒体
10~150
<0.5
造粒体
10~150



Nanometer yttrium zirconium powder
In the new material's research development domain, nanomaterials' research is the most active domain. As a result of the special physical chemistry performance, the products made from nanno powder had the new outstanding performance.
The performance parameter of nano powder is as follows:
Index
Unit
Parameter
Grain
nm
200~300
Sintered temp.
1350
Density
g/cm3
>6.06
Bending strength
Mpa
>900

Low surface yttrium zirconium powder
The characteristic of company’s newborn low chlorine yttrium stable zirconium oxide powder is low surface and low strain rate.
Properties:

Index
Unit
Parameter
Grain
um
1.0
Sintered temp.
1500
Density
g/cm3
>6.03
Bending strength
Mpa
>900



Ce-TZP
Compared with the Y-TZP material, the company newest development’s Ce-TZP material has better thermostable as well as the anti-hydrated ability because of its unique physics and the chemical properties.
